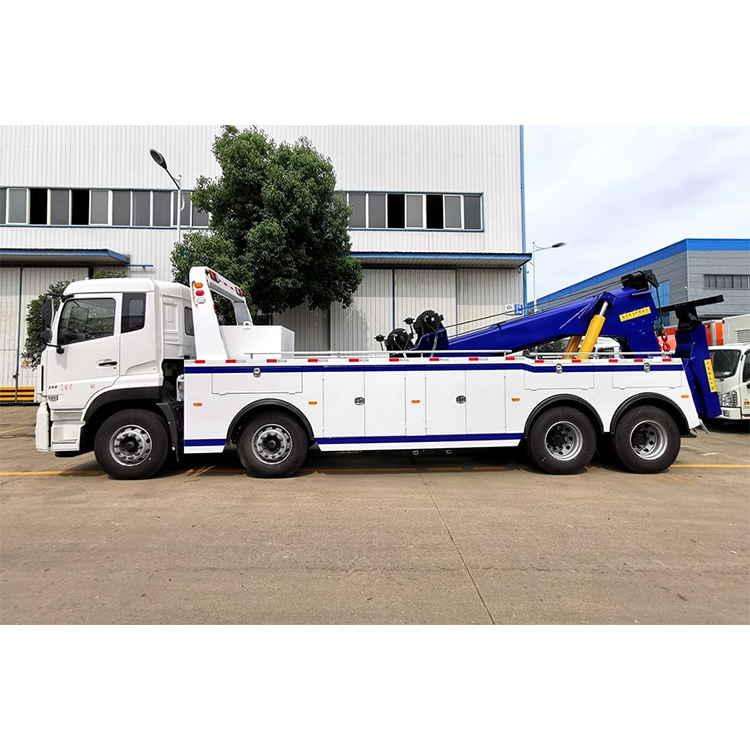

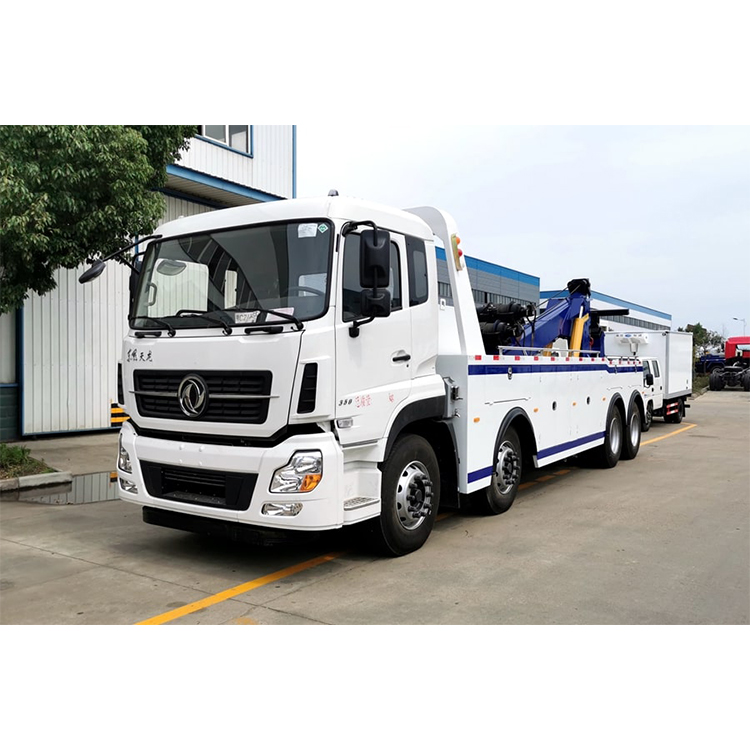

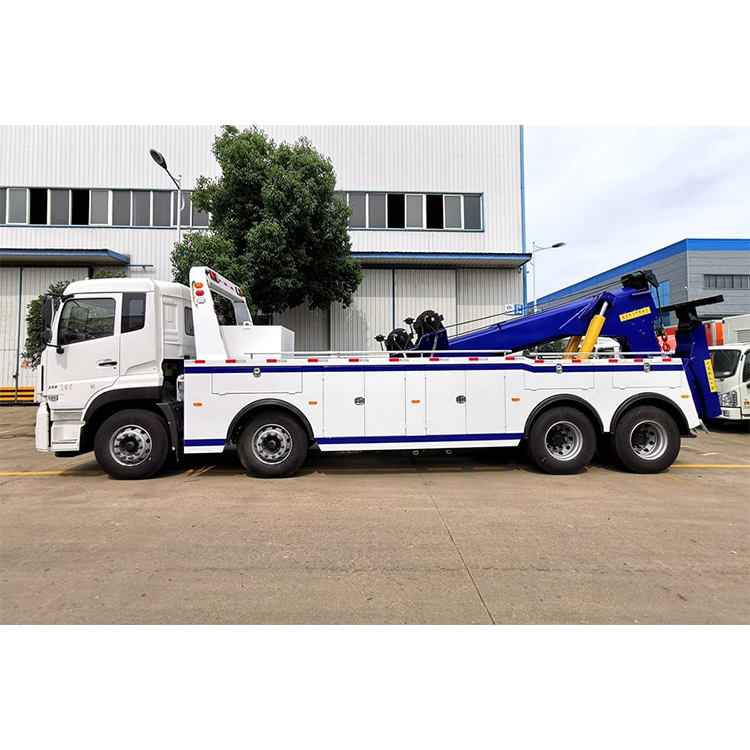

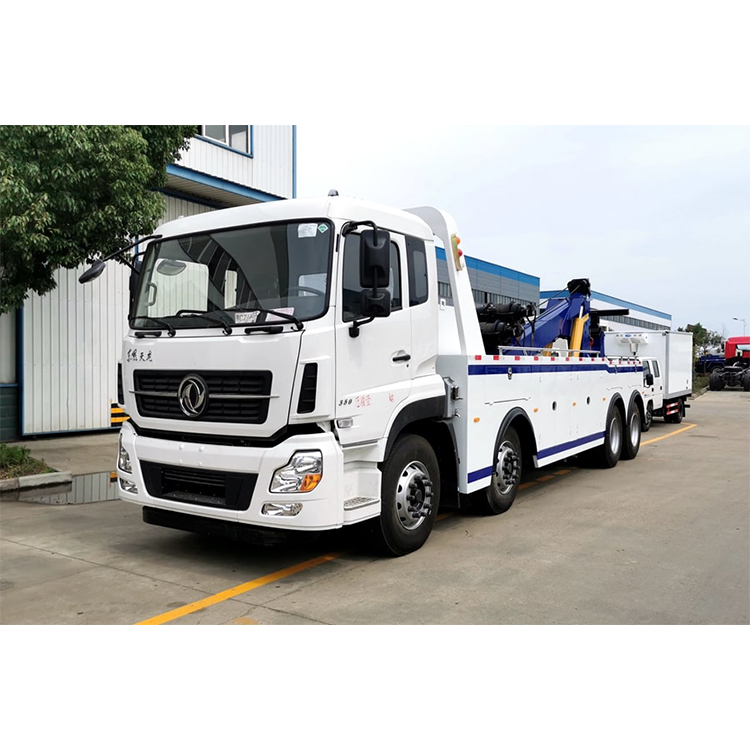

Heavy duty wrecker truck is one kind of wrecker truck, also called large wrecker truck, heavy duty road wrecker truck, which is mainly used for highway and other road accidents or faults of major type of vehicle rescue cleaning, clearing, lifting, hauling and other rescue work.
The full name of wrecker truck is named road wrecker truck, also called trailer and road rescue truck. It has the powerful function and can carry two cars at the same time. It is the ideal choice for road management department and automobile repair plat to proceed to the road repair and rescue.
The full name of the road clearance truck, also known as trailer, roadside assistance vehicles, towing vehicles, with lifting, pulling and lifting traction and other functions, the clearance truck is mainly used for road failure vehicles, city vehicles and rescue and rescue. Clearance vehicle according to the category is mainly divided into: towing and lifting body type, towing and lifting separation type, a towing type, flatbed towing type, multi-function clearance vehicle, hydraulic automatic clamping type. Basically, it is the second class chassis modified by the truck, and the structure type of the truck can be divided into towing, loading, lifting, and rescue (single-armed and double-armed) trucks.
|
Chassis specifications
|
Drive mode
|
8×4
|
|
|
Chassis
|
DFD1311A4
|
||
|
Engine
|
Model
|
Cummins C315 33
|
|
|
Type
|
231/2200
|
||
|
Power/Displacement(Kw/ml)
|
231KW/8900
|
||
|
Type of fuel
|
Diesel
|
||
|
Oil Consumption(km/L)
|
22.4
|
||
|
Tyre
|
Size
|
11.00R20
|
|
|
Gear Box
|
Mechanical 6 speed gear box
|
||
|
Steering
|
Power assist steering
|
||
|
Air conditioner
|
A/C
|
||
|
Dimensions
|
Overall dimension (mm)
|
11310×2500×3520
|
|
|
Wheel base (mm)
|
1950+4250+1300
|
||
|
Front/Rear tread(mm)
|
2022/1830
|
||
|
Performance
|
Max. speed(Km/h)
|
90
|
|
|
App./Dep. angel (°)
|
16/18
|
||
|
Max. gradability (%)
|
30
|
||
|
Min.turning diameter(m)
|
22
|
||
|
Min.ground clearance(mm)
|
240
|
||
|
Mass
|
Payload (Kg)
|
25000
|
|
|
Curb weight(Kg)
|
20770
|
||
|
G.V.W (Kg)
|
45000
|
||
|
Axle Loading Weight(Kg)
|
6000/7000/17500
|
||
|
Special Device
|
16T30D rotary crane
|
||
|

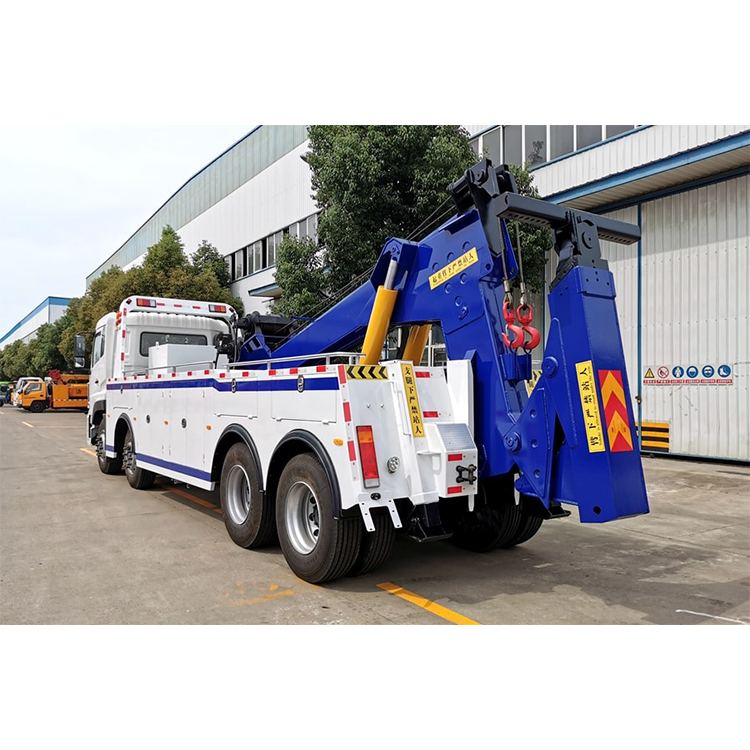

Lifting Structure
|
Max lifting capacity(kg)
|
20000/12000
|
|
|
All stretch out maximum lift capacity(kg)
|
12500/8300
|
||
|
Maximum effective length of the arm
|
3350
|
||
|
Support arm telescopic stroke
|
1650
|
||
|
Lifting load folding angle
|
-7～16
|
||
|
folding angle
|
-7～92
|
||
|
All stretch out the maximum distance from the ground
|
1835
|
||
|
Hoisting Structure
|
Max Hoisting capacity(kg)
|
20000
|
|
|
Fully retracted lifting angle when lifting angle 30°
|
12000
|
||
|
Fully extended lifting angle 30° lifting capacity
|
9000
|
||
|
Basic length of boom
|
5580
|
||
|
Cylinder stretching stroke
|
6000
|
||
|
Max lifting height
|
12300
|
||
|
Max working radius
|
10710
|
||
|
Boom section
|
3
|
||
|
Boom Angle
|
0～60
|
||
|
rotation angle
|
360° continuous rotation
|
||
|
Winch
|
Winch number
|
2
|
|
|
rated traction force (kN)
|
200
|
||
|
Wire rope model
|
22-6x25Fi+IWR1870
|
||
|
Wire rope diameter
|
￠22
|
||
|
Wire rope length
|
60
|
||
|
Wire rope minimum line speed
|
5
|
||
|
outrigger
|
Front leg type
|
Under-mounted H-type
|
|
|
Rear leg type
|
L-type rear leg
|
||
|
Front leg transverse span (mm)
|
6200
|
||
|
Rear transverse span (mm)
|
4030
|
||
|
Front and rear leg longitudinal span (mm)
|
7760
|
||
There are half floor and full floor cleaning vehicles, and the advantage of half floor is that it takes up less space and can reduce the body size.

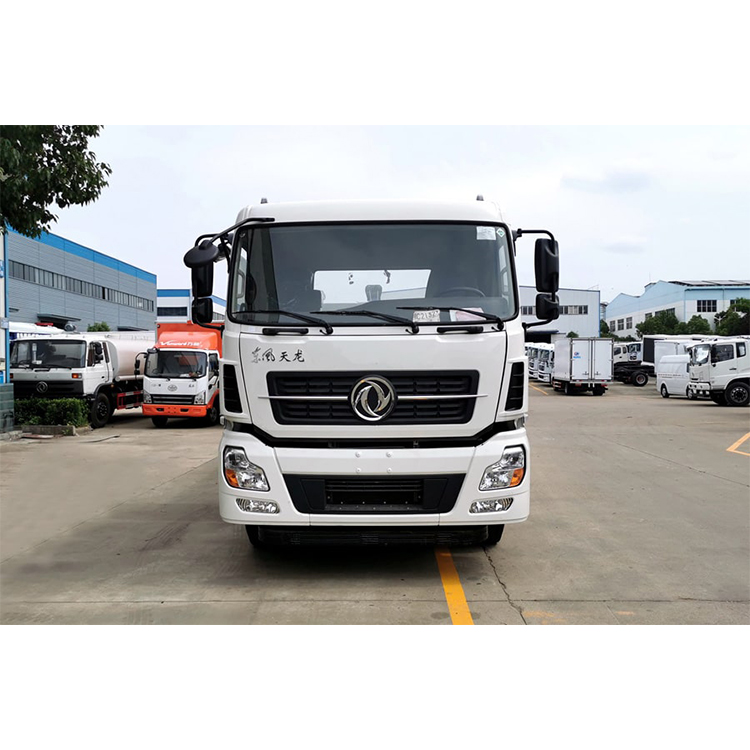

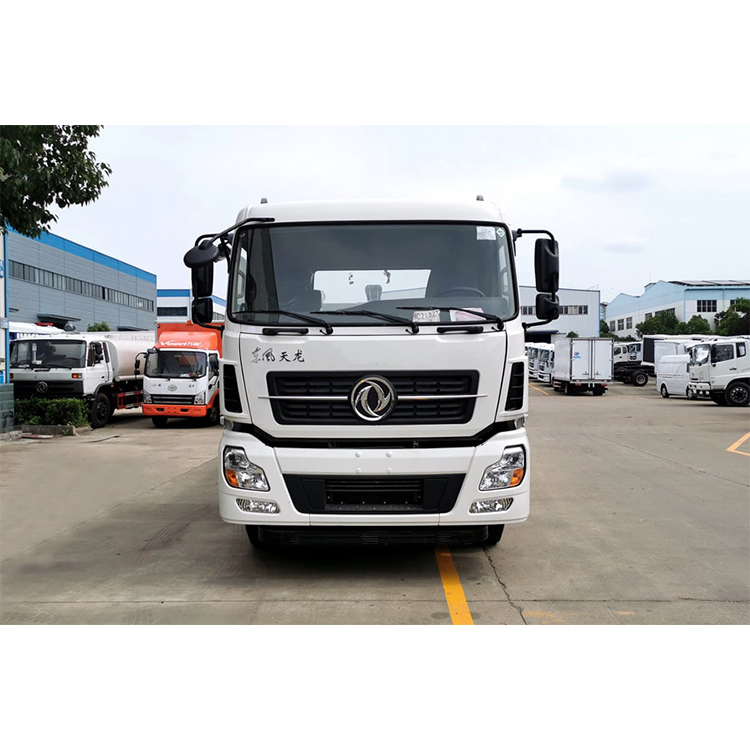

The air intake grille adopts an extremely square design, with two horizontal silver trim strips in the middle as decoration.
The turn signal lamp is just below the headlamp set, which looks very harmonious overall.
During transportation,the vehicle can beeasily lifted onto the platform and lifted smoothly.
